Abstract
Background Antibodies blocking programmed death (PD)-1 or its ligand (PD-L1) have revolutionized cancer care, but many patients do not experience durable benefits. Novel treatments to stimulate antitumor immunity are needed in the PD-(L)1 refractory setting. The stimulator of interferon genes (STING) protein, an innate sensor of cytoplasmic DNA, is a promising target with several agonists in development. However, response rates in most recent clinical trials have been low and mechanisms of response remain unclear. We report detailed biomarker analyses in a patient with anti-PD-L1 refractory, Merkel cell polyomavirus (MCPyV)-positive, metastatic Merkel cell carcinoma (MCC) who was treated with an intratumoral (IT) STING agonist (ADU-S100) plus intravenous anti-PD-1 antibody (spartalizumab) and experienced a durable objective response with regression of both injected and non-injected lesions.
Methods We analyzed pretreatment and post-treatment tumor and peripheral blood samples from our patient with single-cell RNA sequencing, 30-parameter flow cytometry, T cell receptor sequencing, and multiplexed immunohistochemistry. We analyzed cancer-specific CD8 T cells using human leukocyte antigen (HLA)-I tetramers loaded with MCPyV peptides. We also analyzed STING expression and signaling in the tumor microenvironment (TME) of 88 additional MCC tumor specimens and in MCC cell lines.
Results We observed high levels of MCPyV-specific T cells (12% of T cells) in our patient’s tumor at baseline. These cancer-specific CD8 T cells exhibited characteristics of exhaustion including high TOX and low TCF1 proteins. Following treatment with STING-agonist plus anti-PD-1, IT CD8 T cells expanded threefold. We also observed evidence of likely improved antigen presentation in the MCC TME (greater than fourfold increase of HLA-I-positive cancer cells). STING expression was not detected in any cancer cells within our patient’s tumor or in 88 other MCC tumors, however high STING expression was observed in immune and stromal cells within all 89 MCC tumors.
Conclusions Our results suggest that STING agonists may be able to work indirectly in MCC via signaling through immune and stromal cells in the TME, and may not necessarily need STING expression in the cancer cells. This approach may be particularly effective in tumors that are already infiltrated by inflammatory cells in the TME but are evading immune detection via HLA-I downregulation.
- Abscopal
- Intralesional
- Pathogen-Associated Molecular Pattern - PAMP
- Skin Cancer
- T cell
Data availability statement
Data are available in a public, open access repository. Data are available upon reasonable request. Single-cell RNA sequencing and single-cell T-cell receptor sequencing data is available on the Gene Expression Omnibus under ascension number GSE227709.37 Flow cytometry data available upon reasonable request.
This is an open access article distributed in accordance with the Creative Commons Attribution Non Commercial (CC BY-NC 4.0) license, which permits others to distribute, remix, adapt, build upon this work non-commercially, and license their derivative works on different terms, provided the original work is properly cited, appropriate credit is given, any changes made indicated, and the use is non-commercial. See http://creativecommons.org/licenses/by-nc/4.0/.
Statistics from Altmetric.com
WHAT IS ALREADY KNOWN ON THIS TOPIC
Stimulator of interferon genes (STING) agonists have shown promise in preclinical cancer models by activating CD8 T cells13 14 and initiating both local and systemic anticancer responses. However human mechanistic studies remain limited.
WHAT THIS STUDY ADDS
This study of a patient with excellent response to intralesional STING agonism demonstrates increased expression of antigen presentation genes and non-specific T cell expansion likely driven by innate immune cells present in the tumor microenvironment prior to therapy.
HOW THIS STUDY MIGHT AFFECT RESEARCH, PRACTICE OR POLICY
This study suggests that STING agonist therapies may be particularly effective in tumors that evade immune detection by downregulating antigen presentation. Future clinical trials and biomarker studies could benefit from focusing on this mechanism to refine therapeutic strategies.
Introduction
Innate immune sensors of pathogen-associated molecular patterns (PAMPs) represent an important host defense mechanism against infectious agents and have been employed as targets in several oncology clinical trials to stimulate anticancer immunity.1 Stimulator of interferon genes (STING) protein is a PAMP sensor that appears to be a promising target in preclinical mouse models.2–5 The STING pathway senses cytoplasmic DNA through cyclic guanosine monophosphate–adenosine monophosphate (GMP-AMP) synthase (cGAS), which then produces cyclic GMP-AMP as a secondary messenger. This in turn acts on STING protein to induce transcription of type I interferons and inflammatory cytokines via nuclear factor kB and interferon regulatory factor 3.3 The STING pathway is thought to have evolved to protect against double-stranded DNA viruses that replicate in the cytoplasm of cells; however, it can also be engaged by DNA-damaging chemotherapies and radiation that cause DNA release into the cytoplasm.6 7 Murine models have shown that these DNA-damaging therapies lead to adaptive anticancer immune responses, primarily through activation of STING in dendritic cells in the tumor microenvironment (TME).6 8 Based on these findings, several novel agents designed to directly engage STING have been developed.9–12 These STING agonists, when delivered intratumorally (IT), appear to increase IT infiltration of natural killer (NK) cells, activate CD8 T cells13 14 and facilitate both local and systemic anticancer responses.
While IT administration of STING agonists has been successful in murine models, recent clinical trials have yielded disappointing results. In a clinical trial (NCT02675439) of IT ADU-S100 monotherapy in 47 patients with metastatic tumors, only 1 patient had a confirmed response.11 Of note, the only responding patient had a diagnosis of Merkel cell carcinoma (MCC). In a separate trial (NCT03172936) of IT ADU-S100 in combination with intravenous anti-programmed death (PD)-1 (spartalizumab) in 106 patients with metastatic tumors, only 11 patients responded (objective response rate of 10%) with 10 patients achieving a partial response (PR) and 1 patient receiving a complete response (CR).10 One of those 11 responders also had a diagnosis of MCC and is the subject of this report.
MCC is a rare neuroendocrine cancer associated with Merkel cell polyomavirus (MCPyV; a double-stranded DNA virus) and/or ultraviolet radiation exposure, and usually occurs in older and/or immunosuppressed patients.15 Both MCPyV-positive (VP) and MCPyV-negative (VN) MCC tumors are considered immunogenic with excellent prognosis in patients with brisk IT infiltration of CD8 T cells.16 Both MCC subsets have a particularly high response rate to agents that block PD-1 or its ligand (PD-L1), with around half of patients experiencing durable responses.17–20 However, for patients with PD-(L)1 refractory MCC tumors, there is a strong unmet need for effective therapies. Unlike most other cancers, VP-MCC allows unique opportunities to study cancer-specific immune responses because MCPyV-specific CD8 T cells can be isolated across patients using peptide-major histocompatibility complex (MHC) multimers. This approach can provide insight into mechanisms of response and failure for immunotherapies.
Here, we describe the clinical course along with detailed biomarker analyses of a patient with metastatic VP-MCC, refractory to avelumab (anti-PD-L1 antibody) treatment, who experienced durable clinical response in both injected and non-injected lesions with combination treatment of IT STING-agonist (ADU-S100) plus intravenous anti-PD-1 (spartalizumab). To further assess the relevance of our findings to patients with MCC in general, we also determined STING expression and activity in other MCC tumor samples and cell lines.
Results
Clinical MCC history and response to STING agonist and anti-PD-1
A patient in their 60’s presented with a primary VP-MCC tumor located on the left knee along with draining inguinal lymph node metastasis, which was initially treated with surgery and adjuvant radiotherapy (figure 1A). One month later, they developed distant metastatic disease in the left elbow region. They received systemic treatment with intravenous avelumab, which resulted in a CR. Avelumab was electively discontinued after completing 1 year of therapy. Nine months later, the patient developed recurrence with multifocal MCC metastases in the left lower extremity, which were refractory to a 6-month long retreatment with avelumab.
Clinical MCC course and characterization of partial response to intratumoral STING agonist+intravenous anti-PD-1 therapy. (A) Schematic of clinical course of a patient in their 60’s with multifocal metastases on left lower extremity (LLE) from MCPyV+MCC, which had progressed on prior PD-(L)1 blockade. They were enrolled on a clinical trial (NCT03172936) and received two intratumoral injections of the STING agonist (ADU-S100) plus intravenous anti-PD-1 (spartalizumab), both administered every 4 weeks. The patient experienced rapid-onset regression of both injected and non-injected lesions, with durable partial response maintained for 53 weeks before developing progression. (B) Size of injected and non-injected tumors on the LLE throughout the time course depicts a partial response to therapy with an overall decrease in disease burden of 43%. The injected tumor is shown in red with non-injected tumors in black. (C) Representative CT and PET/CT images of LLE lesions are shown prior to, during, and at the time of disease progression. MCC, Merkel cell carcinoma; MCPyV, Merkel cell polyomavirus; PD-1, programmed cell death protein-1; PD-(L)1, programmed death-ligand 1; PET, positron emission tomography; RT, radiotherapy; STING, stimulator of interferon genes.
The patient was subsequently enrolled in the above-mentioned clinical trial (NCT03172936) and received IT injections of the STING agonist (ADU-S100) with intravenous spartalizumab, both administered every 4 weeks. They experienced quick-onset clinical benefit with rapid regression of both injected and non-injected lesions, starting soon after the first treatment, leading to an overall PR (43% reduction in size of target lesions; figure 1B), per Response evaluation criteria in solid tumors (RECIST) V.1.1. After only two administrations of ADU-S100, there were no residual injectable lesions and hence IT ADU-S100 was discontinued. After experiencing disease control for 1 year, the patient experienced MCC progression again with new metastases in the left lower extremity (figure 1B) and started another systemic therapy.
During the course of their treatment, we collected serial tumor biopsies and peripheral blood specimens to characterize antitumor immune response via detailed immunophenotyping of MCC cancer and immune cells, including cancer-specific CD8 T cells, both in the TME and peripheral blood samples.
IT STING agonism increased T cell infiltration into MCC tumors
We first performed single-cell RNAseq (scRNAseq) with feature barcoding (CITEseq) on pretreatment and post-treatment tumor and blood specimens in an unbiased approach to study cell populations and gene expression profiles at various time points. DNA barcoded human leukocyte antigen (HLA)-I tetramers containing MCPyV or bystander cytomegalovirus (CMV) and Epstein-Barr virus (EBV) peptides were used to identify antigen-specific T cells (figure 2).21 We then designed a 27-fluorophore flow cytometry panel to further refine the initial observations from the CITEseq studies and to also allow the identification of rare cell populations that could have been missed due to the lower number of cells that can be analyzed via scRNAseq (figure 2A).
Intratumoral T cells increase following intralesional STING agonism. (A) Experimental overview. CITEseq was performed on pretreatment and post-treatment tumor and blood specimens for unbiased analyses. Key markers and cell populations were identified and used to design a 30-parameter flow cytometry panel to validate samples in high throughput fashion to capture rare cell populations. (B) UMAP plot of 30-parameter flow cytometry data from pre-STING and post-STING agonist treatment. Each point represents one cell colored by cell lineage. Samples were subsetted to 10,000 cells per time point for visualization purposes. (C) Alluvium plot of tumor composition before and after STING agonism showing expansion of T cells and contraction of cancer cells following treatment with STING agonist. (D) Alluvium plot of cancer cells subclustered into proliferating MCC and non-proliferating cells showing contraction of both populations. (E) Alluvium plot of T cells showing an expansion of T cells following STING agonism. All T cells expanded similarly regardless of phenotype. (F) Alluvium plot of myeloid cells before and after STING agonist treatment. A predominance of plasmacytoid dendritic cells was noted but minimal changes occurred over the course of therapy. cDC, classical dendritic cells; CITEseq, feature barcoding; CLA, cutaneous lymphocyte antigen; DNT, double negative T cells; Eff, effector; MCC, Merkel cell carcinoma; Mem, memory; Myelo, myeloid cells; Neut, neutrophils; NK, natural killer cells; pDC, plasmacytoid dendritic cells; pExh, progenitor exhausted; prolif, proliferating; STING, stimulator of interferon genes; TAM, tumor associated macrophages; tExh, terminally exhausted; TREG, Regulatory T cell; t-SNE, t-distributed stochastic neighbor embedding; UMAP, Uniform Manifold Approximation and Projection.
Unbiased clustering and dimensionality reduction in the pretreatment (baseline) tumor biopsy revealed the TME composition of 70% cancer cells and 28% immune cells, with the remaining 2% of cells bearing markers of stromal/endothelial cells including CD34. 95% of immune cells were in the T cell, NK cell or dendritic cell clusters, with other cells such as B cells, tumor-associated macrophages and neutrophils being relatively rare. Meanwhile, cancer cells are primarily grouped into two distinct clusters of proliferating and non-proliferating cells, as differentiated by Ki67 expression.
Following IT STING agonist injection, cancer cells decreased from 70% to 49% of the TME, while all T cells (CD4 and CD8) increased twofold from 18% to 36% (figure 2B and C). Further subclustering of MCC cancer cells, T cell and myeloid populations (figure 2, online supplemental figures 1–3) revealed that while both cancer cell populations decreased over the course of immunotherapy, the most dramatic change was in the proliferating cancer cells, which decreased from 17% of all cells in the TME before treatment to 5% following treatment (figure 2D). Subclustering of T cells revealed that memory CD4 T cells, Regulatory T cells (TREG), CLA+CD8 T cells, progenitor exhausted, and terminally exhausted CD8 T cells each comprised more than 2% of the cells in the TME prior to STING treatment. All T cell populations increased proportionally following treatment without major phenotypic changes (figure 2E). No significant changes were observed in myeloid cells. However, a high portion of myeloid cells were plasmacytoid dendritic cells (2.7% of pretreatment cells, marked by CD123 expression), which are thought to specialize in sensing some PAMPs. An additional 2% of cells in the TME were classical dendritic cells (marked by high CD11c expression). Both dendritic cell populations expressed high levels of STING protein (online supplemental figure 3).
Supplemental material
Supplemental material
Supplemental material
Cancer-specific CD8 T cells expand in tumors following IT STING agonism
Given the overall increase in T cells observed following STING agonism, we sought to characterize the dynamics of antigen-specific T clones in the tumor and blood using a dual approach schematized in figure 3A. T cell specificity was identified using DNA barcoded HLA-I tetramers (with MCPyV, CMV or EBV peptides) with paired CITEseq and T-cell receptor (TCR) variable-diversity-joining (V(D)J) sequencing (figure 3B). Cancer-specificity of multimer-positive cells was further supported by visualizing CD39 positivity in these cells, known to be elevated in IT cancer-specific T cells.22 This resulted in 12 T cell clonotypes specific for MCPyV in a B*37:01 allele. CD8 T cells specific for other MCPyV or other viral epitopes were detected at low levels, and antigen-specific TCRs could not confidently be identified.
Intralesional STING treatment increases cancer-specific intratumoral T cell frequency. (A) Schematic of approach to quantifying frequency of MCPyV-specific CD8 T cells in tumor and blood specimens. Tumor or blood specimen were stained with DNA oligo and fluorophore labeled MHC tetramers and CITEseq with V(D)J seq was performed to identify specificity of TCRs. In parallel, beta-TCRseq was performed on tumor and blood specimens to quantify frequency of TCR clonotypes. (B) Gating of MCPyV-specific CD8 T cells via CITEseq. All cells with a single productive alpha and single productive beta TCR are shown. Cells with identical TCR sequences were grouped as clonotypes. X axis represents the median counts of CD8 antibody for each clonotype and y axis represents the median counts of an HLA-B*37:01 multimer containing a T antigen peptide. (C) Frequency of T cell clonotypes in tumor and blood before and after intralesional STING agonism. Alluvium plot where each alluvium represents and individual T cell clonotype. Clonotypes known to be MCPyV-specific are green. MCPyV-specific CD8 T cells were present in tumor and blood of patient. CITEseq, feature barcoding; HLA, human leukocyte antigen; MCPyV, Merkel cell polyomavirus; MHC, major histocompatibility complex; PBMC, peripheral blood mononuclear cells; STING, stimulator of interferon genes; TCR, T-cell receptor; tx, treatment; V(D)J, variable–diversity–joining.
T cell clonal frequency was quantified using bulk beta TCRseq (figure 3C). This approach revealed that bulk T cells (CD4 and CD8) expanded from 3.3% of the TME before STING agonism to 13% after agonism, similar to the T cell expansion measured using flow cytometry. This expansion appeared to be non-specific as all T cell clones expanded roughly proportionately, regardless of T cell specificity. Greater than 99% of 5,128 clonotypes did not significantly change in proportion following treatment. Specifically, only 8 of 5,128 IT clones increased in a statistically significant manner following treatment and 20 of 5,128 clones significantly decreased as a portion of all T cells (expanded/contracted clones determined by beta-binomial test with p value<0.01; see Methods and online supplemental figure 4).
Supplemental material
While the aforementioned approach quantified T cells of unknown specificity, we also sought to quantify cancer-specific T cells in pretreatment and post-treatment tumors. This was done by annotating the bulk TCRseq data with TCR sequences of known specificity derived from CITEseq and MHC multimers. This analysis revealed that cancer-specific CD8 T cells expanded from 0.39% of all cells in the TME prior to STING agonism to 0.93% of all cells in the TME after agonism. However, this was again largely driven by non-specific T cell expansion as 11.7% of T cells in the TME before STING agonist treatment and 7.2% of T cells after treatment were specific for the B*37:01 MCPyV epitope (figure 3C). Individual cancer-specific T cell clones did undergo some dynamic changes with 1 of 12 cancer-specific clones expanding following STING treatment and 2 of 12 contracting as a portion of all T cells (online supplemental figure 4). Cancer-specific T cells were long-lived in the blood and were detected 1 year after treatment (at the time of recurrence) at frequencies similar to pretreatment (0.04% of all peripheral blood mononuclear cells (PBMC)).
Cancer-specific CD8 T cells exhibit characteristics of exhaustion
We next sought to phenotype cancer-specific T cells in the tumor and blood. Unbiased clustering of scRNAseq of CD8 T cells yielded clusters of memory, naïve, progenitor exhausted, terminal exhausted, two effectors, and two gamma delta populations (figure 4A and B). Expression of stem-like and memory genes was higher in CD8 T cells in blood, while genes associated with exhaustion were higher in tumor tissues and highest in cancer-specific T cells (figure 4C). Cancer-specific CD8 T cells in tumors were largely confined to the terminally exhausted population defined by high expression of PDCD1 (PD-1) and ENTPD1 (CD39) (figure 4B and D). The proportion of IT cancer-specific CD8 T cells in the terminally exhausted population decreased slightly following STING agonism, but low numbers of cancer-specific CD8 T cells in the pretreatment time point limited these analyses (figure 4D). To circumvent the low capture efficiency of scRNAseq, flow cytometry was subsequently used as a higher throughput technique. These data show high expression of TOX, TCF7 and PD-1 proteins in IT cancer-specific CD8 T cells (99% PD-1+, 99% TOX+, 14% TCF1+, in pretreatment samples, figure 4E). This was unchanged following STING agonism suggesting that treatment did not induce lasting phenotypic changes in IT cancer-specific CD8 T cells.

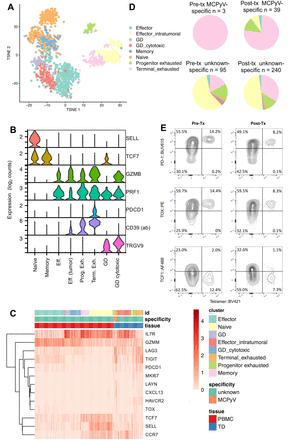

Cancer-specific CD8 T cells exhibit characteristics of exhaustion. (A) TSNE plot of CD8 T cells isolated in silico from single-cell RNAseq of patient tumor and blood specimens. Cells are colored by cluster. (B) Violin plots of expression of key genes in each cluster. Each row represents gene expression except for CD39 which is protein expression. (C) Heatmap of single-cell RNAseq data of CD8 T cells from tumor or blood specimen. (D) Portion of MCPyV-specific CD8 T cells in tumors in each of eight clusters. MCPyV-specific CD8 T cells in top pie charts and CD8 T cells of unknown specificity in bottom charts. Pretreatment specimen on left hand side and post-treatment on right. N in each pie chart represents number of CD8 T cells that are cancer-specific (top) or of unknown-specificity (bottom). (E) FACS plots of CD8 T cells from tumors showing expression of proteins associated with exhaustion or stem like phenotypes in cancer-specific T cells. Eff., effector; FACS, fluorescent activated cells sorting; GD, gamma delta T cells; MCPyV, Merkel cell polyomavirus; PBMC, peripheral blood mononuclear cells; PD-1, programmed cell death protein-1; TD, tumor digest; t-SNE, t-distributed stochastic neighbor embedding; tx, treatment.
MCC cancer cells are STING deficient
To study the effects of IT ADU-S100 on cancer, immune and stromal cells in the TME, we first analyzed STING expression in the TME by performing multiplexed immunohistochemistry (mIHC) on the studied patient’s tumor specimen. Previous studies of STING in MCC have suggested that this pathway is deficient in VP-MCC.23 We confirmed that the STING protein was indeed absent in the MCC cancer cells, with mIHC staining showing STING expression in immune and stromal cells, but an absence of STING protein in cancer cells (figure 5A). This pattern of STING expression was then confirmed broadly in further staining of 88 MCC tumors from 68 unique patients (55 VP, 13 VN), which similarly showed an absence of STING expression in cancer cells (figure 5B).

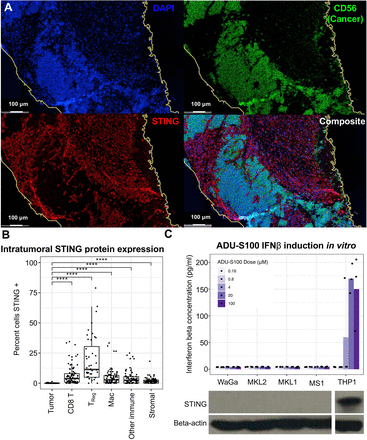

Merkel cell carcinoma cancer cells are deficient in STING signaling. (A) Multiplexed immunohistochemistry of post-ADU-S100 treated tumor. Areas of CD56 positivity (representing MCC cancer cells) are non-overlapping with STING positivity, which is primarily expressed in stromal and immune tissues. (B) Quantification of STING expression. Each point represents 1 of 88 unique tumor specimens on a tissue microarray. STING is universally absent in MCC cancer cells. Cancer cells defined as CD56+, CD45−, CD8 T cells defined as CD8+, Treg cells defined as CD4+, FoxP3+, macrophages defined as CD68+ or CD163+, other immune cells defined as CD45+ cells which did not fall into prior categories, stromal cells defined as CD45−, CD56− cells. Statistical comparison with one-way ANOVA compared with tumor expression. *p<0.05, **p<0.01, ****p<0.0001, NS (not significant). (C) MCC cell lines do not produce interferon-beta in response to ADU-S100 treatment. WaGa, MKL-2, MKL-1, MS1 MCC cells and THP1 cells (control human monocytic cells) were all treated with decreasing doses of ADU-S100. None of the MCC cell lines produced detectable interferon-beta at any tested ADU-S100 concentration. These cells were all also deficient in STING protein (western blot, below). ANOVA, analysis of variance; 4',6-diamidino-2-phenylindole (DAPI); Mac, macrophage; MCC, Merkel cell carcinoma; STING, stimulator of interferon genes; T-Reg, Regulatory T cell.
