Abstract
Background Arginase-1 (Arg1) expressing tumor-associated macrophages (TAMs) may create an immune-suppressive tumor microenvironment (TME), which is a significant challenge for cancer immunotherapy. We previously reported the existence of Arg1-specific memory T cells among peripheral blood mononuclear cells (PBMCs) and described that Arg-1-based immune modulatory vaccines (IMVs) control tumor growth and alter the M1/M2 macrophage ratio in murine models of cancer. In the present study, we investigated how Arg1-specific T cells can directly target TAMs and influence their polarization.
Methods Murine Arg1-specific CD4+T cells isolated from splenocytes of animals vaccinated with an Arg1-derived peptide in the adjuvant montanide were co-cultured with either in vitro M2-differentiated bone marrow-derived macrophages or ex vivo isolated F4/80+TAMs. Human Arg1-specific CD4+T cell clones were co-cultured with Arg1-expressing TAMs generated in vitro from either PBMC-derived CD14+cells or the myeloid cell lines MonoMac1 and THP-1. MHC class II-restricted Arg-1 peptide presentation by macrophages was confirmed by immunopeptidomics. T-cell-mediated changes in the macrophage immune phenotype and cytokine microenvironment were examined using flow cytometry, RT-qPCR and multiplex immunoassay. The effect of Arg1-derived peptide IMV on TAMs in vivo was assessed by multiplex gene analysis of F4/80+cells.
Results We show that Arg1-based IMV-mediated tumor control was linked to a decrease in multiple immunosuppressive pathways in the TAM population of the treated animals. Tumor-conditioned media (TCM) derived from Arg1-vaccinated mice induced significantly higher upregulation of MHC-II on exposed myeloid cells compared with controls. Furthermore, murine CD4+Arg1-specific T cells were able to target TAMs and effectively reprogram their phenotype ex vivo by secreting IL2 and IFNγ. Next, we established that human Arg1+TAMs present Arg1-derived peptides and are directly recognized by proinflammatory CD4+Arg1-specific T cell clones. These CD4+Arg1-specific T cells were able to reprogram TCM-conditioned macrophages as observed by increased expression of CD80 and HLA-DR.
Conclusions TAMs may be directly targeted and modulated by Arg1-specific CD4+T cells. These findings provide a strong rationale for future clinical development of Arg1-based IMVs to alter the immune-suppressive TME by reprogramming TAMs and promoting a proinflammatory TME.
- T cell
- Macrophage
- Immune modulatory
- Vaccine
Data availability statement
Data are available on reasonable request.
This is an open access article distributed in accordance with the Creative Commons Attribution Non Commercial (CC BY-NC 4.0) license, which permits others to distribute, remix, adapt, build upon this work non-commercially, and license their derivative works on different terms, provided the original work is properly cited, appropriate credit is given, any changes made indicated, and the use is non-commercial. See http://creativecommons.org/licenses/by-nc/4.0/.
Statistics from Altmetric.com
WHAT IS ALREADY KNOWN ON THIS TOPIC
Arg1-specific T cells are present in the memory T cell compartment of both healthy donors and patients with cancer. In mouse models, immune modulatory vaccination with a class II-restricted Arg1-derived peptide controls tumor growth in different models.
WHAT THIS STUDY ADDS
We demonstrate that Arg1-specific CD4+T cells target and modulate the tumor microenvironment by altering the phenotype of tumor-associated macrophages.
HOW THIS STUDY MIGHT AFFECT RESEARCH, PRACTICE OR POLICY
These findings support the development of Arg1-based immune-modulatory vaccines as a promising approach to targeting macrophage-mediated immunosuppression in cancer.
Introduction
Immune-modulatory vaccines (IMVs) offer a novel therapeutic modality that combines the specific targeting of immune regulatory cells and the engagement of T cell-mediated immunity by activating and expanding anti-regulatory T cells (anti-Tregs).1 Anti-Tregs recognize tumor microenvironment antigens (TMAs)2 expressed by regulatory cells—for example, IDO1,3 4 PD-L15–7 and Arg1.8 9 An IDO1-derived and PD-L1-derived peptide-based IMV has shown a significant improvement in the objective response (OR) rate in a phase 1/2 clinical trial involving patients with advanced metastatic melanoma who were treated in combination with anti-PD-1 therapy10: 80% of patients achieved an OR, as compared with around 42% in a matched historical cohort, and 50% of the 30 patients obtained a complete response as recently updated.11 This approach is currently being investigated in a phase III trial as a first-line treatment for metastatic melanoma (https://clinicaltrials.gov/, NCT05155254).
The similar activation of Arg1-specific T cells represents a promising novel approach directed against Arg1-expressing regulatory cells frequently found in the tumor microenvironment (TME). In preclinical mouse models, we demonstrated effective control of tumor growth in animals treated with an Arg1-derived peptide IMV and observed a synergistic effect when combined with anti-PD-1 treatment.12 Based on these results, we sat out to investigate if and how Arg1-specific T cells directly affect Arg1-expressing tumor-associated macrophages (TAMs). TAMs represent one of the most prevalent immune cell subsets found within the TME and are, therefore, a major contributor to both protumor and antitumor immune responses. Within the TME, direct interaction between macrophages and tumor-infiltrating T cells is often viewed in the context of tumor-associated antigen (TAA) presentation by the macrophages. TAMs greatly outnumber dendritic cells in the TME but are known to be less effective at stimulating T-cell proliferation.13 In recent years, the focus on TAMs has increased since these cells are among the first to encounter the malignant tumor and have been shown to contribute to both the generation and maintenance of the immune-suppressive TME.14 Here, we report the ability of Arg1-specific CD4+ T cells to directly alter the phenotypic characteristics of TAMs ex vivo and in vitro.
Materials and methods
Peptides
The peptides ArgLong2 (ISAKDIVYIGLRDVDPGEHYILKTLGIKYFSMTEVDRL), Mart1-Long (RNGYRALMDKSLHVGTQCALTRR) and Arg1261–280 (TEEIYKTGLLSGLDIMEVNP), OVA323–339 ISQAVHAAHAEINEAGR peptides were produced by Schafer-N (Denmark) at >90% purity.
Animals and mouse tumor models
Female C57BL/6 JBom Tac mice (8–12 weeks old) were purchased from Taconic or obtained from own breeding facility (CCIT-DK). Animal experiments were conducted at the animal facility of the Department of Oncology, Copenhagen University Hospital, Herlev, Denmark, following Federation of European Laboratory Animal Science Association guidelines and under a license issued by the Danish Animal Experimentation Inspectorate (2021-15-0201-01001). MC38 (Kerafast, CVCL-B288)) and LL (ATCC, CRL-1642) were cultured in DMEM supplemented with 10% heat-inactivated fetal bovine serum (FBS, Life technologies, cat. 1020070-106) and 1% penicillin/streptomycin (Gibco, cat. 61870-010). The cell lines were mycoplasma tested. For tumor inoculation, 5×105 cells were subcutaneously injected into the left flank. The mice were randomized into different treatment arms and tumor growth was measured three times a week using a vernier digital caliper. Tumor volume was calculated based on the measured perpendicular diameters by applying the following formula: volume (mm3)=(length×width2/2).
Peptide vaccination
For vaccination, lyophilized peptides were reconstituted to a concentration of 10 mM in dimethyl sulfoxide (DMSO). Mice were vaccinated with 100 µg of peptide emulsified in Montanide ISA 51 VG (Seppic, cat. 36 362Z), containing either Arg1 IMV (Arg1261–280 peptide) or OVA peptide (OVA323–339). The emulsions were prepared by mixing the diluted peptides at a 1:1 ratio with Montanide ISA 51 VG using a double female luer lock connector (Promepla, cat. ODG0015ST). The connector was attached to 1 mL Inject-F syringes (Braun, cat. 9166017V) to ensure thorough mixing.
The administration of the peptide emulsions was performed subcutaneously at the base of the tail using a 27-gage needle (BD Bioscience, cat. 302200). Mice were vaccinated twice at weekly intervals. Control mice received a peptide-free vaccine composed of the peptide solvent DMSO diluted in water, emulsified with Montanide ISA 51 VG.
Tissue dissociation
For isolation of splenocyte, the spleens were collected immediately after euthanasia and mechanically disrupted by filtering through a 70 µm strainer followed by treatment with red blood cell lysis buffer (Qiagen, cat. 158904). CD4+T cells were isolated using a CD4+T cell isolation kit (Miltenyi, cat. 130-104-454) according to the manufacturer’s instructions.
For isolation of TAMs, tumors were transferred to a digestions buffer containing 2 mg/mL of collagenase IV (Millipore, cat. C5138) and 75 µg/mL DNAse (Sigma Aldrich, cat. DN25) in RPMI-1640. The tumors were cut into small pieces using scissors and enzymatically digested for 30 min at 37°C and 650 rpm. The cell suspension was filtered through a 70 µm strainer and incubated with red blood cell lysis (Qiagen, cat. 158904). TAMs were isolated using anti-F4/80 MicroBeads UltraPure according to the manufacturer’s recommendations (Miltenyi, cat. 130-110-443). The purity of the isolated TAMs was evaluated throughflow cytometry following the protocol described in the manuscript. The purity of the samples obtained from isolation was 78%–97% as described in online supplemental figure 1.
Supplemental material
ELISpot
To quantify vaccination-specific T-cell responses in the treated animals, 9×105 splenocytes were seeded per well into 96-well ELISpot plates previously coated with 6 µg/mL anti-mouse interferon gamma (IFNγ) antibody (AN18 monoclonal capture antibody, Mabtech, Cat. 3321-2-1000). The samples were stimulated with 5 µM concanavalin A as a positive control (Sigma-Aldrich, Cat. C5275), DMSO as a negative control or 5 µM of peptide. The cells were kept in culture for 18 hours. The plates were then washed with PBS before 2 hour incubation with 1 µg/mL of monoclonal anti-mouse IFNγ R4-8A2 biotinylated antibody (Mabtech, cat. 3321-6-10), followed by a 1-hour incubation with streptavidin ALP (Mabtech, cat. 3321-10). For detection, the assay was developed using the BCIP/NBT plus substrate (Mabtech, cat. 3650-10). The results spots were analyzed with the CTL ImmunoSpot S6 Ultimate analyzer (Cellular Technology), and Immunospot Software (Cellular Technolog).
To evaluate TAM recognition by CD4+T cells, 7.5×104 TAMs were co-incubated with 4×105 CD4+ T cells using pre-coated mouse IL2 plates (Mabtech, Cat. 3441-4APW-2) combined with anti-mouse IL-2 biotinylated (5H4, Mabtech, Cat. 3441-6-1000). IL2 ELISpot was performed following the same procedure as described above.
Proliferation assay
T cells purified from spleens of untreated mice using the Pan T cell isolation kit II mouse (Miltenyi, cat. 130-095-130) were then labeled with CSFE and cultured in a 1:1 dilution of tumor-conditioned media (TCM) and fresh RPMI medium supplemented with 10%FBS and 1% PenStrep. The T cells were stimulated by adding Dynabeads Mouse T-Activator CD3/CD28 (Gibco, cat. 11 456D) to induce proliferation in a 1:1 bead-to-cell ratio. After a 72-hour incubation, the cells were harvested and labeled for analysis on NovoCyte Quanteon (Agilent) (see Flow cytometry section).
Nanostring analysis of gene expression
Gene expression of sorted TAMs was analyzed using the nCounter Mouse Myeloid Innate Immunity V2 Panel (Nanostring technologies, cat. XT-CSO-MM112-12). The data were normalized to the expression of the endogenous genes included in the panel. Quality control and differential gene expression analysis were performed using the ROSALIND software. Genes that displayed a ≥1.5 fold change and p values <0.05 (not adjusted for multiple testing) were considered differentially expressed. Gene set enrichment analysis was also performed in the ROSALIND software by using nanostring pathway annotations.
Murine bone marrow-derived macrophage
Bone marrow was isolated from the femur and tibia of C57Bl/6 J Bom Tac mice by flushing with cold PBS using a 23-gage needle and filtered through a 70 µm cell strainer, followed by treatment with blood cell lysis buffer. Cultures were established by platting 4×106 cells in a 100 mm culture plate containing 10 mL of Dulbecco's Modified Eagle Medium (DMEM) supplemented with 20% FBS, 1% P/S and 20 ng/mL of human macrophage colony-stimulating factor (m-CSF, Peprotech, cat. 300-25-10UG), as human M-CSF is active in murine cells.15 M2 polarization was induced by treatment with 20 ng/µL of murine IL-4 (Peprotech, cat. 214-14-20UG).
Murine ex vivo macrophage co-cultures
Bone marrow-derived macrophage (BMDM)-M2 or freshly isolated TAMs derived from MC38-bearing mice were seeded in 96 well UpCell Nunc plate (ThermoFisher, cat. 174897) with CD4+T cells at a ratio of 1:5 in medium containing 20 ng/mL m-CSF (Peprotech) overnight.
Luminex
Cytokine concentrations in co-culture supernatants were quantified using Bio-PlexPro mouse cytokine IL1β, IL2, IL4, IL10, IL12, IL13, IFNγ, TNFα, VEGF and human IL2, IFNγ, TNFα, IL6, IL8 cytokine assays (Bio-rad) according to manufacturer’s instructions. Samples were acquired on Bio-Plex200 and analyzed using Bio-Plex Manager V6.
Establishment of human Arg1-specific and Mart1-specific T cell clones
ArgLong2 peptide (ISAKDIVYIGLRDVDPGEHYILKTLGIKYFSMTEVDRL) specific CD4+T cell clones were isolated and expanded from peripheral blood mononuclear cells (PBMCs) of patients with cancer with either melanoma (MM1636.23) or myeloproliferative neoplasms (MPN) (MPN19H2.08). Mart1-Long peptide (RNGYRALMDKSLHVGTQCALTRR) specific CD4+T cell clones were isolated and expanded from PBMCs of the cancer patient with MPN. All specific T cell clones were expanded using rapid expansion protocol (REP) with irradiated feeder cells (PBMCs from three different donors), in X-VIVO 15 (Lonza, cat. 02-053Q) +5% Human Serum, 30 ng/mL anti-CD3 antibodies (OKT3, from Janssen-Cilag or Miltenyi Biotec) and 6000 U/mL IL2 (Proleukin, Novartis).
Flow cytometry
Human co-cultures were treated with Human TruStain FcX Fc receptor blocking solution (Biolegend, cat. 422302) and stained using HLA-DR/APC (cat. 559868), PD-L1/PE (cat. 557924), CD80/PE-Cy7 (cat. 561135) and FVS510 (cat. 564406) from BD Biosciences and CD4/BV510 (cat. 317444) from Biolegend. The samples were analyzed on FACSCanto II (BD Biosciences).
Murine co-cultures were treated with FcR blocking reagent (Miltenyi Biotec, cat. 130-092-575) and stained using antibodies from BioLegend or NordicBiosite: anti-F4/80/FITC (clone BM8, Biolegend, cat. 123108), anti-CD11b/PacificBlue (clone M1/70, Biolegend, cat. 101226), anti-PDL1/APC (clone MIH5, BD Pharmingen, cat. 564715), anti-CD80/BV711 (clone 16–10 A1, BD Pharmingen, cat 104743), anti-CD86/PerCP-Cy5.5 (clone GL-1, Biolegend, cat. 105027), anti-CD206/PE-Cy7 (clone C068C2, Biolegend, cat. 141720), anti-MHCII/APC-Cy7 (clone M5/114.15.2, Biolegend, cat. 107627) and Zombie Aqua fixable viability dye (Biolegend, cat. 423101).
The samples were fixed prior to analysis on NovoCyte Quanteon (Agilent). Data analysis was performed using FlowJo V.10 (Treestar). The gating strategy used for the identification of macrophages throughout this manuscript is represented in online supplemental figure 1. For proliferation assay, murine splenocytes were stained with CFSE, anti-CD3/AF700 (clone 17A2, Biolegened, cat. 100216), anti-CD4/BV421 (clone GK 1.5, Biolegened, cat. 100437), anti-CD8/BV605 (clone 53–6.7, BD Horizon, cat. 563152), Zombie aqua (Biolegend, cat. 423102). Samples were acquired on NovoCyte Quanteon (Agilent) and analyzed using FlowJo V.10 (Treestar).
Intracellular cytokine staining
Intracellular cytokine staining for IFNγ and TNFα production by human Arg1-specific T cells was performed as previously described.6 Briefly, T cells were stimulated with 5 µM of peptide or co-cultured with the relevant target cells for 5 hours. GolgiPlug was added to all samples after 1 hour of incubation. Following stimulation, cells were stained with surface marker-specific antibodies, then fixed and permeabilized using the Fixation/Permeabilization Kit (eBioscience, cat. 00-5123-43). After fixation and permeabilization, intracellular markers were stained. The following antibodies were used: anti-CD4/PerCP (clone SK3, BD Biosciences, cat. 345770); CD8+/FITC (clone SK1, BD Biosciences, cat. 345772); Anti-CD3/APC-H7 (clone SK7, BD Biosciences, cat. 560275); IFNγ-APC (clone 25723.11, BD Biosciences, cat. 341117); TNFα/BV421 (clone Mab11, BD Biosciences, cat. 562783). Dead cells were excluded from analysis using the FVS510 viability dye (BD Biosciences, cat. 564406). The samples were analyzed on a FACSCanto II flow cytometer (BD Biosciences).
Cancer cell lines and TCM
THP-1 purchased from ATCC (TIB-202) and MonoMac1 cell line obtained from DSMZ, German Collection of Microorganisms and Cell Cultures (ACC 252).
Human TCM was generated from breast cancer cell line MDA-MB-231 (ATCC, CVCL_0062) or ovarian cancer cell line SKOV-3 (ATCC, CVCL_0532) based on Benner et al16 using X-VIVO 15 (Lonza)+5% HS. Harvested TCM was stored at −80°C. All cell lines were tested and confirmed to be negative for mycoplasma.
Murine TCM was generated using tumor digests from MC38-bearing mice. 0.6×106 cells were plated in 1.2 mL RPMI in 24-well plates and incubated overnight at 37°C. Harvested TCM was stored at −80°C.
Human TCM-differentiated myeloid target generation and co-culture

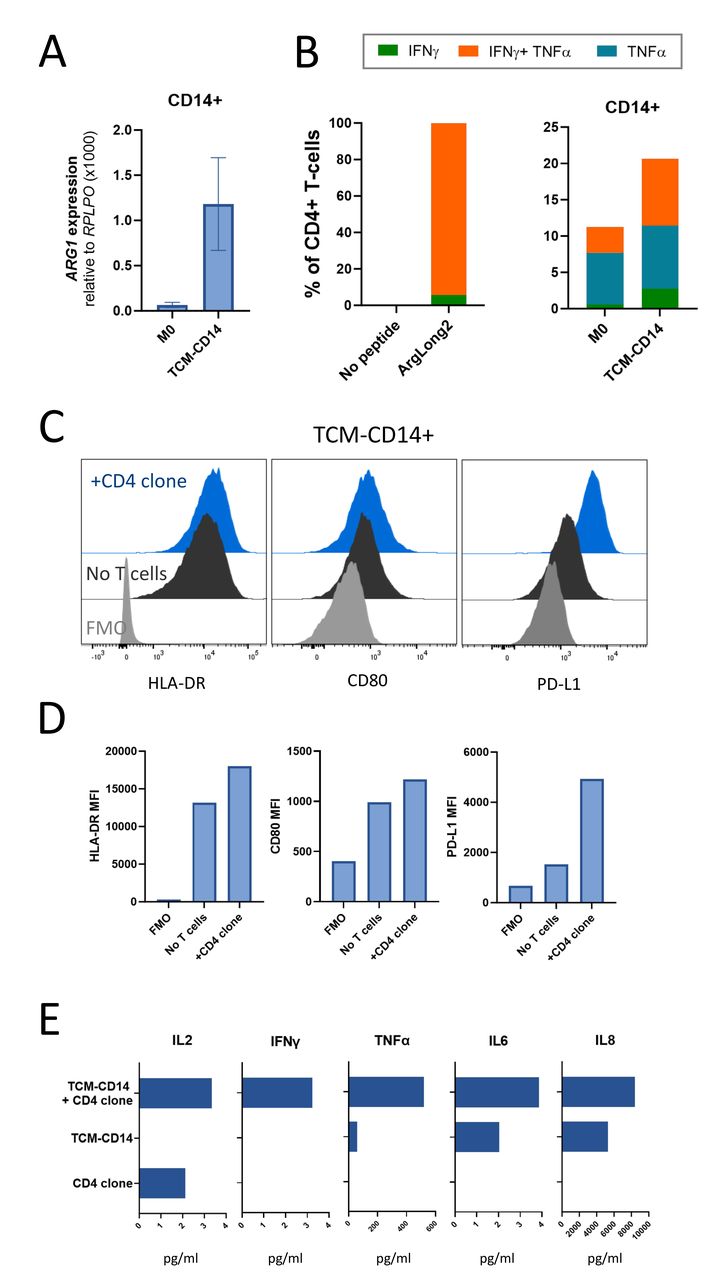

Human CD14+monocytes magnetically sorted from freshly thawed PBMCs or myeloid cancer cell lines (THP-1 or MonoMac1) were treated with 1 mL of TCM mixed with 1 mL of fresh X-VIVO 15 (Lonza)+5% HS for 48 hours prior to co-culture with T cells. HLA class II compatibility of the target cells and the specific T cell clones is summarized in online supplemental table 1.
Immunopeptidomics

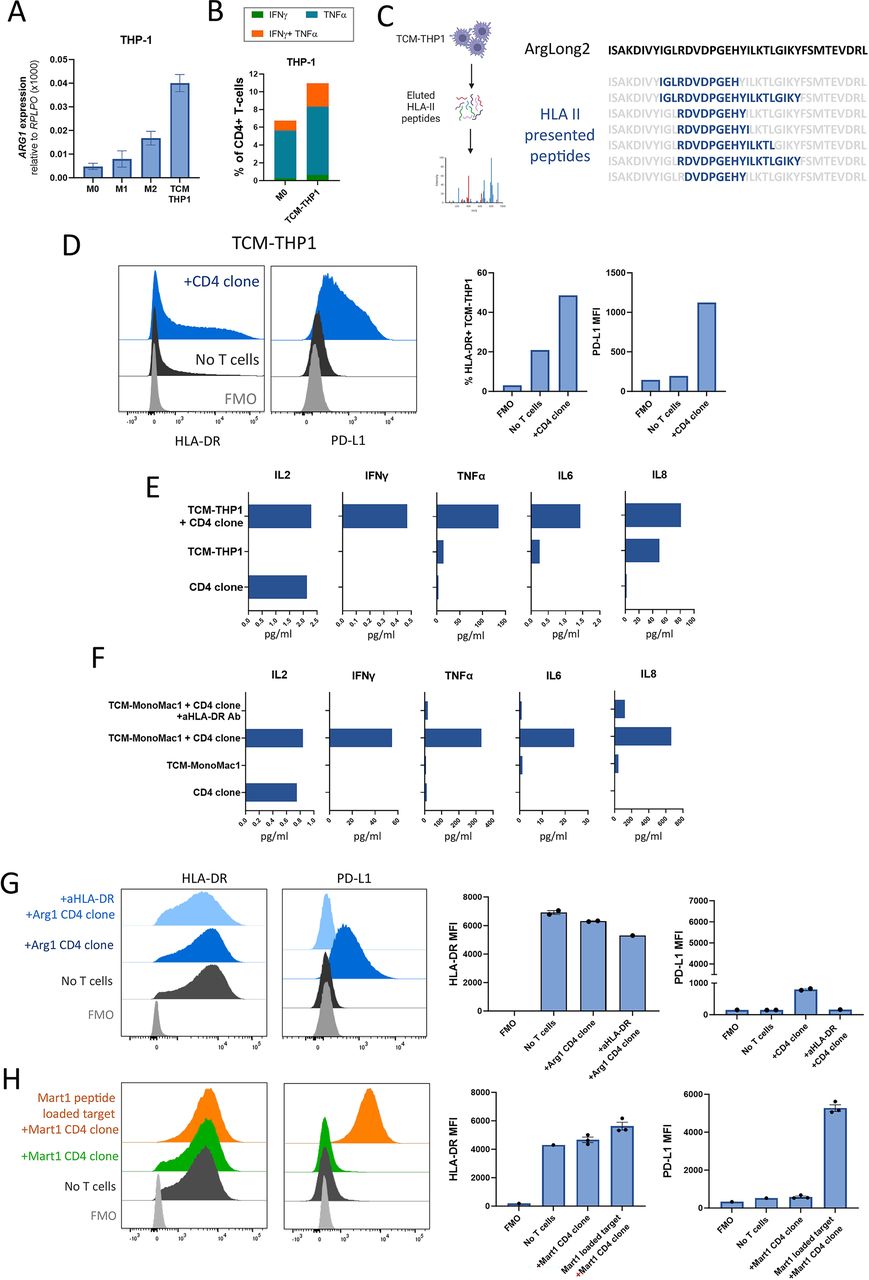

Immunopeptidomics profiling of the HLA II presented peptides was performed using TrueDiscovery platform performed by Biognosys AG (Switzerland). 235 million snap frozen THP-1 cells differentiated using TCM (TCM-THP1) from breast cancer cell line MDA-MB-231 were lysed with non-denaturing buffer and used for pan-allele HLA class II immunoprecipitation followed by peptide isolation. The eluted peptides were injected on an in-house packed reversed-phase column on a Thermo Scientific EASY-nLC 1200 nano-liquid chromatography system connected to a Thermo Scientific Orbitrap Exploris 480 mass spectrometer equipped with a Nanospray Flex ion source and a FAIMS Pro ion mobility device (Thermo Scientific). The generated data were analyzed using Spectronaut software V.18.5.231110.55695.
RT-qPCR
mRNA was isolated using the RNeasy Plus mini kit (Quiagen, cat. 74136) following the manufacturer’s guidelines. cDNA was synthesized from 1 µg RNA using the Maxima first strand cDNA synthesis kit for RT-qPCR (Thermo Scientific, cat. K1671). Gene expression was assessed by RT-qPCR using TaqMan Fast advanced master mix (Applied Biosystems, cat. 4444963) and TaqMan gene expression probes (Life technologies): Arg1 (Mm00475988_m1), and Hprt (Mm03024075). Human RPLP0 (Hs99999902_m1), ARG1 (Hs00163660_m1).
Thermocycling was performed in QuantStudio 6 Pro (Applied Biosystems, cat. A43181). Gene expression was analyzed using the 2−ΔCT method17 and normalized to HPRT (murine samples) or RPLP0 (human samples).
Statistical analysis
Statistical analysis for comparison between the different treatment groups was performed in the GraphPad Prism. Differences in flow cytometry data or gene expression were analyzed by applying an unpaired t-test while differences in tumor growth were analyzed through a mixed-effect model.18 19
Results
Arg1 immune modulatory vaccination controls tumor growth by promoting a proinflammatory phenotype of the TAMs
We previously demonstrated that activation of Arg1-specific CD4+ T cells by an Arg1-derived peptide vaccine resulted in tumor growth control and was associated with increased M1/M2 macrophage ratio in the TME of MC38 tumors.12 In the present study, we investigated whether this antitumor effect was mediated by the direct targeting and modulation of the Arg1-expressing TAMs. We, therefore, treated mice inoculated with MC38 tumor cells with an Arg1 IMV consisting of Arg1261–280 peptide vaccine, MHC class II-restricted OVA control peptide (OVA323–339), or a peptide-free montanide emulsion. In accordance with the previously published data,12 a tumor growth delay was observed in Arg1 peptide-vaccinated animals but not in animals treated with OVA peptide or no-peptide montanide control (figure 1A, online supplemental figure 2A–C). We confirmed that the vaccination with Arg1 IMV and OVA peptides led to comparable CD4+ T cell responses against the respective peptide epitopes as detected by ex vivo IFNγ ELISpot (figure 1B). To further characterize the Arg1 IMV vaccine-associated overall changes in TAM phenotype in vivo, we performed multiplex gene analysis of the sorted F4/80+ TAMs. We identified 25 genes with a significantly differential expression in TAMs isolated from Arg1 peptide-vaccinated mice compared with the montanide control (online supplemental figure 3,4A) and 31 genes when compared with the OVA control (figure 1C and online supplemental figure 5). No significant differences were identified between the TAMs from montanide and OVA controls (data not shown). Gene set analysis revealed that Arg1 IMV treatment led to an enrichment of proinflammatory processes in the TAMs, including Th1 activation, TLR signaling and IFN signaling. A reduced enrichment of gene sets associated with overall Th2 activation and extracellular matrix remodeling was also observed (online supplemental figure 4B). Gene expression revealed a significant reduction in Arg1 expression and an increased Nos2 expression in TAMs from Arg1 IMV treated animals compared with montanide and OVA323–339 control groups (figure 1D,E) suggesting a skewing toward iNOS mediated L-arginine metabolism and anti-tumor associated M1-like macrophage function. TAMs from Arg1 IMV treated mice also displayed a significant downregulation of several protumorigenic TAM markers, including Trem2, Mrc1, Marco and Ccl24 (figure 1F–I).

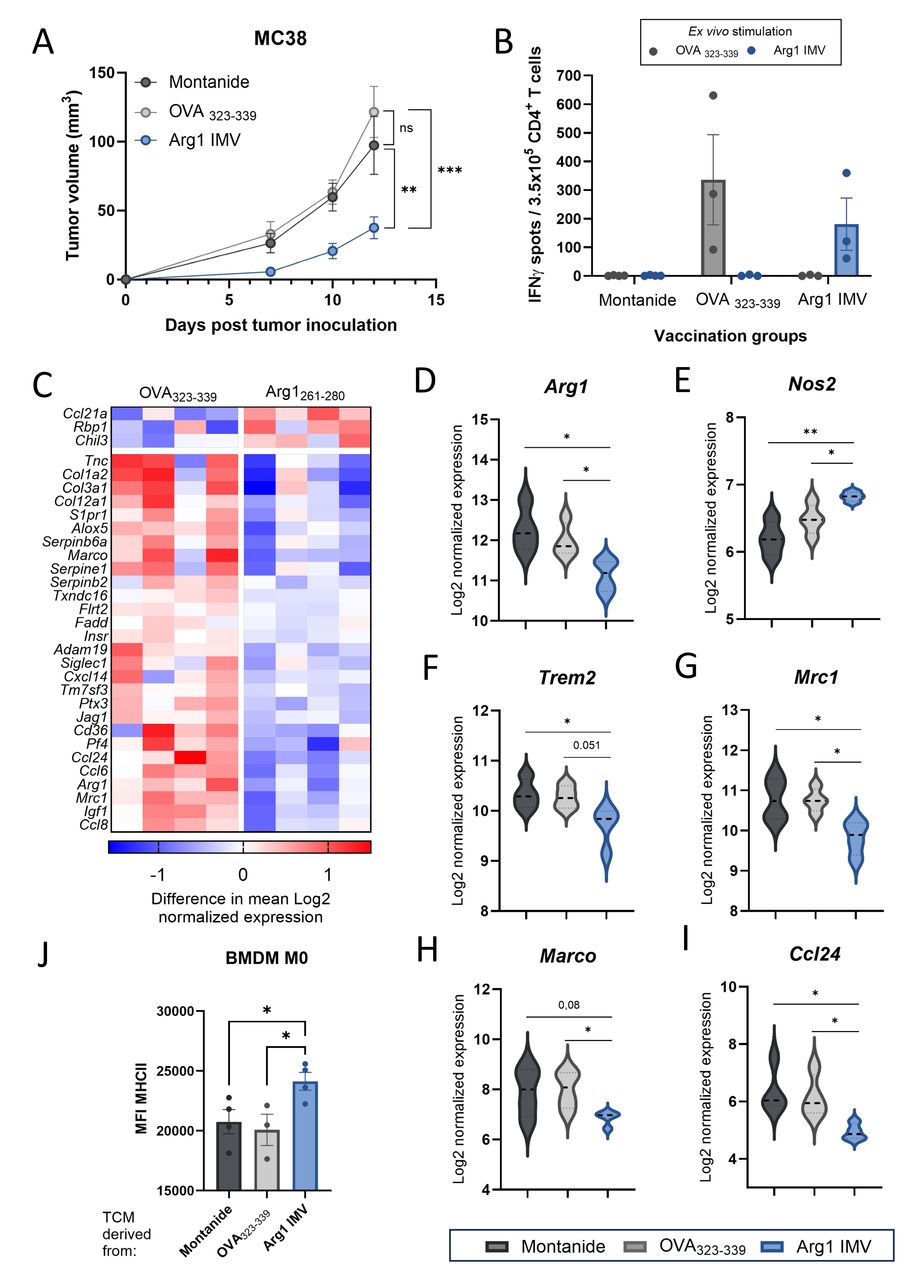

Arg1 IMV treatment-induced MC38 tumor growth delay is associated with changes in TAM phenotype in vivo. (A) MC38 tumor growth curves of mice treated with Arg1 IMV (n=12), OVA (n=9) peptide emulsion in montanide or peptide-free montanide emulsion (n=12). 100 µg of each peptide was injected on days 0 and 7 post-tumor inoculation. Statistical differences were identified by applying a mixed model. **p≤0.01; ***p≤0.001. (B) Arg1 IMV and Ova 323-339 peptide specific responses quantified by IFNγ ELISpot in CD4+T cells isolated from splenocytes of treated tumor bearing animals. (C) Heat map of differentially expressed genes in TAMs purified from Arg1 IMV-treated mice, in comparison with gene signature of OVA 323–339-treated animals. F4/80+macrophages were sorted from MC38 tumors 13 days after tumor inoculation. Gene expression is plotted as difference with mean log2 expression. (D–I) Difference individual gene expression for TAMs sorted from peptide-free montanide control, Ova or Arg1 IMV-vaccinated animals. Differences in Arg1 (D), Nos2 (E), Trem2 (F), Mrc1 (G), Marco (H) and Ccl24 (I) were evaluated by applying an unpaired T test. *p≤0.05, **p≤0.01. (J) Expression of MHC-II in bone marrow-derived macrophages cultured overnight with TCM derived Montanide, OVA 323-339 or Arg1 IMV treated MC38-bearing animals. All bars represent mean values±SEM. Statistical differences in flow data were analyzed by applying an unpaired student t-test. *p≤0.05. IMV, immune modulatory vaccine; ns, not significant; TAM, tumor-associated macrophage.
Arg1-specific T cell-mediated TAM repolarization contributes to the generation of immune-favorable TME
Next, to investigate if changes in the TAM phenotype observed in the Arg1 peptide treated animals were associated with an overall TME, we generated TCM from tumor digests of the different treatment groups and assessed its impact on the ex vivo proliferation of spleen-derived T cells and the phenotype of M0-BMDMs. The cytokine composition of the different TCM was analyzed revealing that the TCM consisted of many different cytokines including IL1β, IL2, IL4, IL10, IL12, IL13, IFNγ, TNFα, and VEGF (online supplemental figure 6). No significant difference between the control and the Arg1 IMV TCMs was identified. Still, a significantly higher proliferation of CD4+and CD8+ T cells in response to aCD3/aCD28 stimulation was observed in TCM derived from Arg1 IMV-treated animals as compared with montanide control (online supplemental figure 2F,G). We additionally detected that TCM from Arg1 IMV treated mice induced a significant upregulation of MHC-II (figure 1J) and was also associated with a tendency for a reduced Arg1 and CD206 expression (online supplemental figure 2D,E) compared with M0-BMDMs cultured with TCM derived from montanide control and OVA vaccinated animals. These results suggest that Arg1 IMV therapy supports the immune activation and the proinflammatory phenotype of newly recruited immune cells.
Murine CD4+ Arg1-specific T cells recognize Arg1+ TAMs and effectively reprogram their phenotype ex vivo by secreting IL2 and IFNγ
To further investigate how Arg1 IMV therapy can affect TAMs, we assessed the targeting of Arg1+myeloid cells by Arg1-specific CD4+T cells in murine ex vivo and in vitro models. The expression of Arg1 in myeloid cells is known to increase in response to Th2 cytokines such as IL4 and/or IL1320 and is thus primarily associated with an M2-like macrophage phenotype. We confirmed an increased expression of Arg1 in differentiated murine M2-like BMDM compared with undifferentiated M0 cells (figure 2A). Next, we investigated the direct consequences of the interaction between murine Arg1-specific T cells and Arg1-expressing macrophages by co-culturing splenic CD4+ T cells from either Arg1-vaccinated or control mice with M2-like BMDMs as illustrated in figure 2B. Before establishing the co-cultures, we confirmed the generation of Arg1-specific T-cell responses induced by vaccination using IFNγ ELIspot (figure 2C). A significant increase in the percentage of CD80Hi and CD86Hi but no significant change in MHC-IIHi macrophages was observed in co-culture with CD4+ splenocytes from Arg1 IMV treated mice compared with CD4+ splenocytes from control animals (figure 2D), suggesting that the targeted macrophage population had improved antigen-presenting cell function. Concurrently, we detected a significant decrease in CD206Hi macrophages, indicating a repolarization away from the M2-like phenotype (figure 2D). In addition, we observed an increase in the percentage of PD-L1Hi macrophages (figure 2D), suggesting an involvement of a counter-inflammatory response. The observed phenotypic changes of murine M2-like macrophages were accompanied by an increase in IL2 and IFNγ in the co-cultures with CD4+ splenocytes from Arg1 IMV vaccinated mice compared with co-cultures with control CD4+ splenocytes or M2-differentiated BMDM alone (figure 2E). Moreover, we confirmed that BMDM-M2 were directly recognized by Arg1-specific CD4+T cell as detected by IL2 ELISpot (figure 2F).

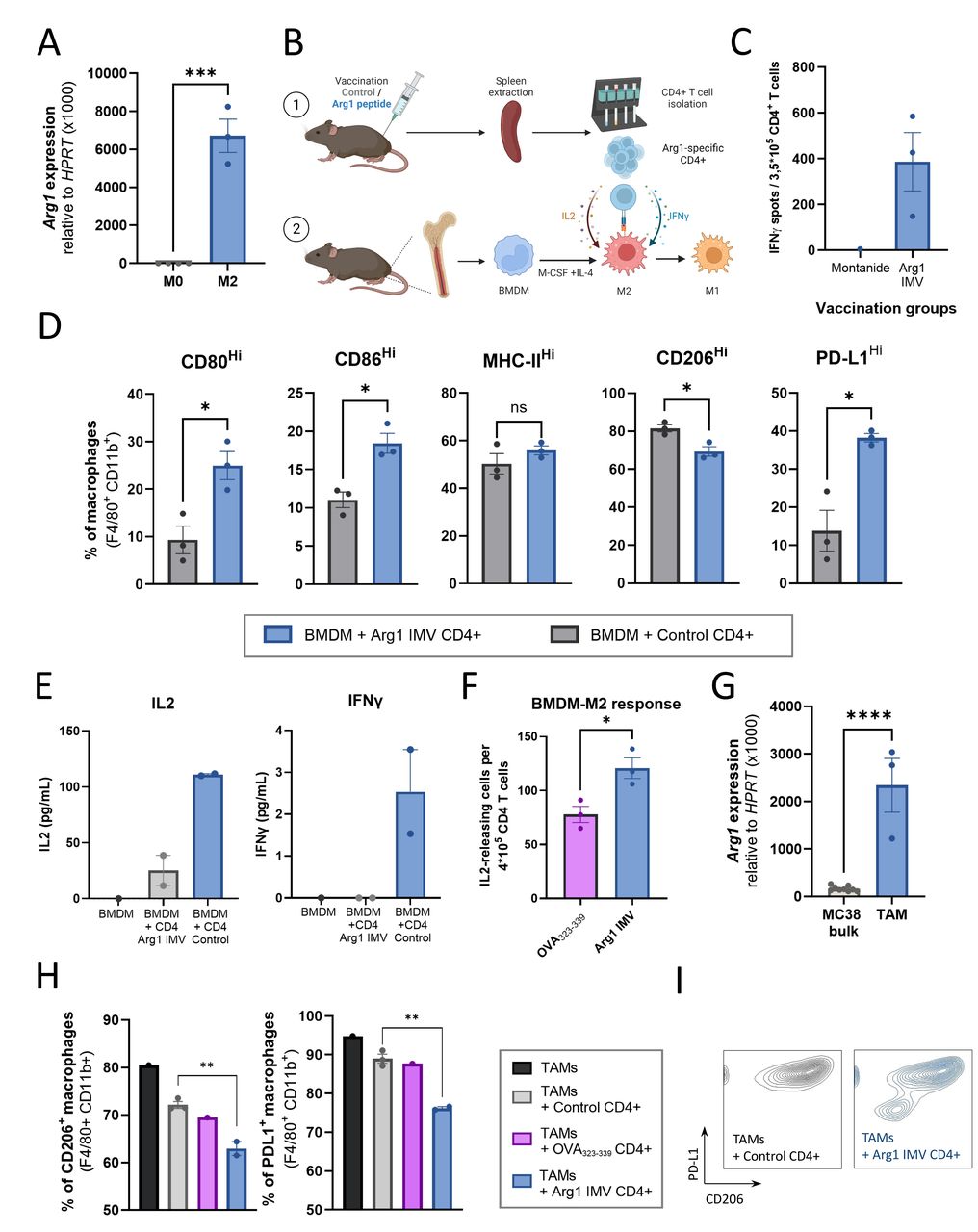

Murine Arg1-specific T cells reprogram Arg1-expressing macrophages ex vivo. (A) Arg1 expression determined through RT-qPCR analysis of murine bone marrow derived macrophages (BMDM) undifferentiated (M0, n=4) or differentiated into M2 (n=3). (B) Diagram representing the experimental set-up: (1) CD4+T cells were isolated from the spleens of mice vaccinated with either the peptide-free control or Arg1 IMV and co-cultured ON with (2) M2 differentiated BMDM. Created with BioRender.com. (C) Arg1 IMV peptide-specific T-cell responses quantified by IFNγ ELISpot in CD4+T cells isolated from splenocytes of vaccinated mice. (D) Phenotype changes in the macrophage population as determined by changes in the percentage of CD80Hi, CD86Hi, MHC-IIHi, CD206Hi and PD-L1Hi macrophages in co-cultures with CD4+T cells isolated from control (gray) or Arg1 IMV (blue) treated animals as determined by flow cytometry. n=3 per group. (E) IL2 and IFNγ concentrations in co-culture supernatants from M2 macrophages alone (dark gray) or after ON co-culture with CD4+T cells from control (light gray) (n=2) or Arg1 IMV-treated mice (blue) (n=2) as measured by Luminex. (F) BMDM-M2-specific responses quantified by IFNƴ ELISpot using sorted CD4+T cells from OVA323–339 (n=3) and Arg1 IMV (n=3) vaccinated mice. BMDM-M2 was co-incubated with CD4+T cells at a ratio of 1:5. (G) Arg1 expression in unsorted MC38 tumor bulk samples (n=9) and isolated F4/80+tumor-infiltrating macrophages (n=3) as measured by RT-qPCR. The expression of Arg1 was evaluated relative to hypoxanthine phosphoribosyltransferase (HPRT) expression. (H) Flow cytometry analysis of CD206 and PD-L1 expression on TAMs alone or TAMs after co-culture with CD4+T cells isolated from either control animals (light gray) (n=3), OVA-vaccinated animals (purple) (n=1) or Arg1 IMV vaccinated mice (blue) (n=2). TAMs were isolated from MC38 tumors. (I) representative contour plot showing PD-L1 and CD206 coexpression on TAMs after co-culture with CD4+T cells from control (gray) or Arg1 IMV (blue) treated mice. TAMs were isolated from MC38 tumors. Data are displayed as average±SEM. Statistical differences were analyzed by applying an unpaired Student’s t-test. *p≤0.05; **p≤0.01; ***p≤0.001; ****p≤0.0001. E:T ratio of 5:1 was used. IMV, immune modulatory vaccines; ns, not significant; TAMs, tumor-associated macrophages.
